Semiconductor Vibration Test Machine, Accelerated Vibration Testing
vibration test machine is used to test the objects/products property in a vibration transportation environment, such as boat, car, truck and train. It is widely applied to electronic, electrical and mechanical, photoelectric, auto-mobile, toys, packaging......
Semiconductor Vibration Test Machine, Accelerated Vibration Testing Features
1 Light armature, high stiffness, 4000 HZ frequency.
2 Computer connecting line control, immediately store materials.
3 Display controlling chart.
4 Low resistance and high performance design, high efficiency, low cost.
5 High reliability, low fault.
Test standard:
Comply with JIS, UL, DIN, ISO, BS, MIL, IEC, ASTM and other related test standard.
Semiconductor Vibration Test Machine, Accelerated Vibration Testing Technical specification
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
....
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

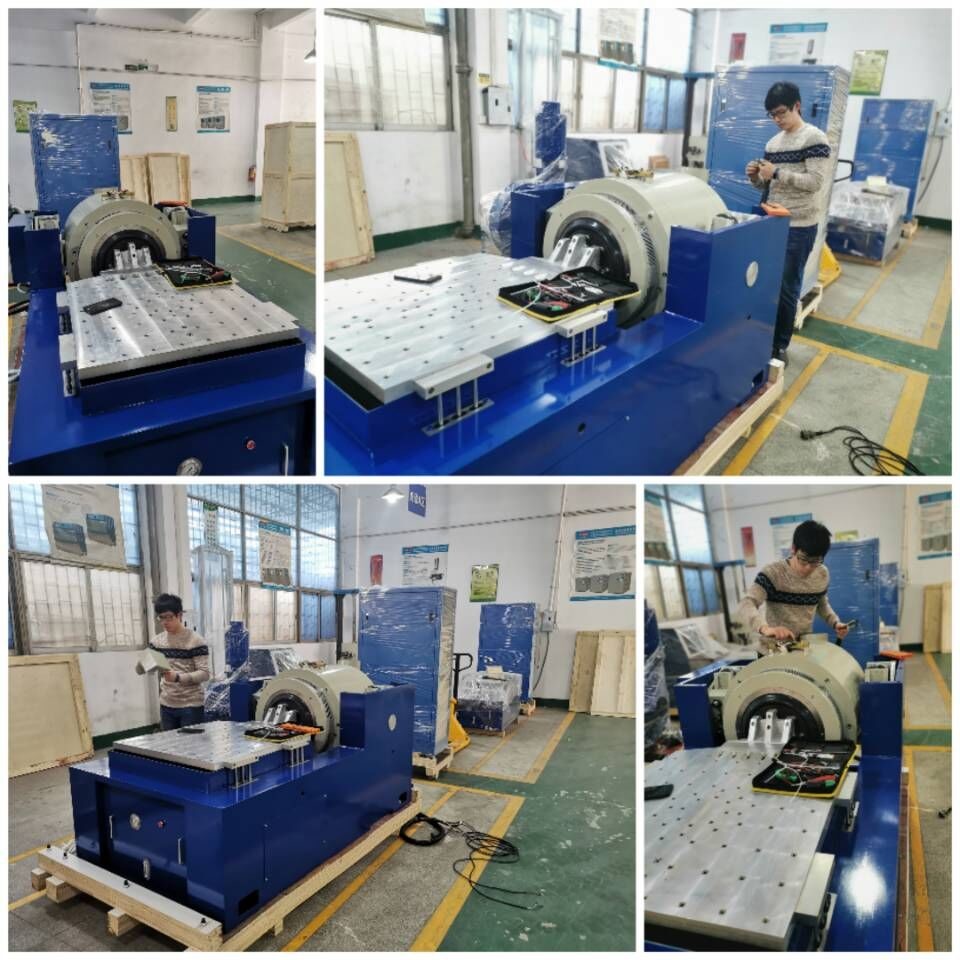

Pictures for reference:
